A complete solution set for solving complex resistor networks. This download includes step-by-step calculations for finding equivalent resistance in bridge and ladder circuits, applying Voltage and Current Divider rules, and using Kirchhoff's Current Law (KCL) to solve for unknown branch currents.

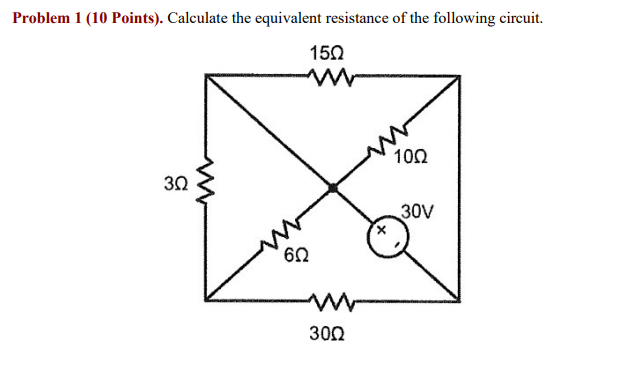

Problem 1 (10 Points). Calculate the equivalent resistance of the following circuit.

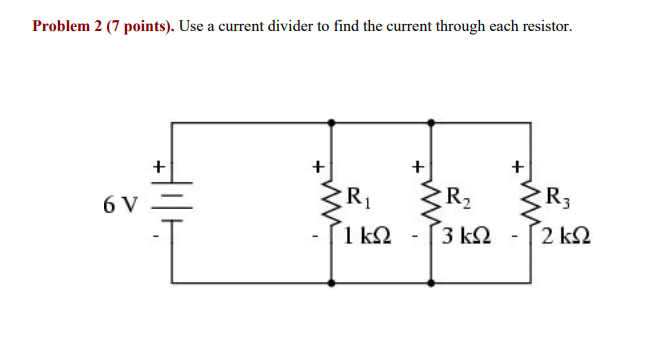

Problem 2 (7 points). Use a current divider to find the current through each resistor.
AREN 3040 Circuits for AREN Spring 2026

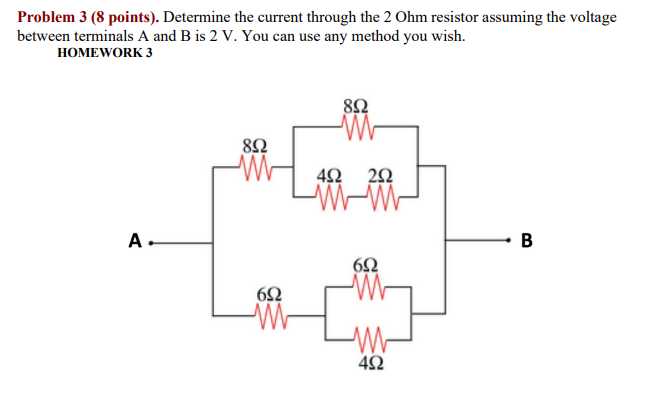

Problem 3 (8 points). Determine the current through the 2 Ohm resistor assuming the voltage
between terminals A and B is 2 V. You can use any method you wish.
HOMEWORK 3
Problems 4-7 (20 points). For the following circuits, find the indicated unknowns (marked with
question marks) using voltage and current dividers.
AREN 3040 Circuits for AREN Spring 2026

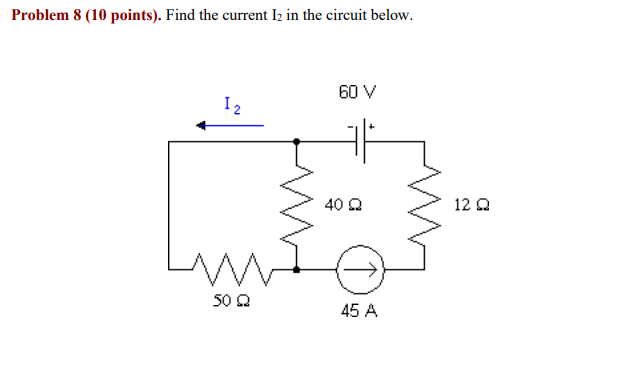

Problem 8 (10 points). Find the current I2 in the circuit below.

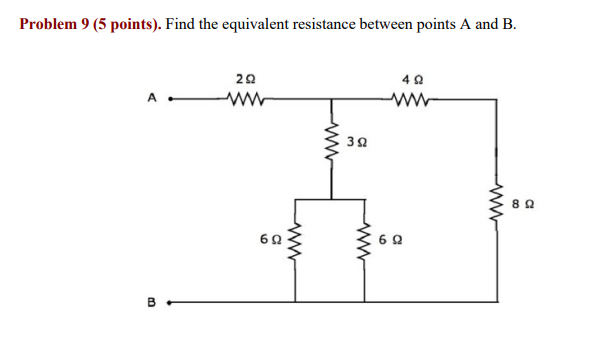

Problem 9 (5 points). Find the equivalent resistance between points A and B.
